1
SAFE RUST REMOVER
  •    Evapo-Rust is a patent pending non-hazardous rust remover that employs a unique selective chelating agent to remove rust (iron oxide) without posing any health or environmental hazards.
2
BIODEGRADABLE EVAPO-RUST
Safe Rust Remover

  • WINNER - R&D’s “TOP 100 INVENTIONS AWARD ”
  • WINNER - CleanTech’s “Outstanding Technology in Industrial Cleaning ”
  • NO LABOR * NO ACIDS/CAUSTICS * SAFE ON SKIN!
  • UNIQUE - Works by Selective Chelation at pH 6 - 7 (neutral)
  • REPLACES Acids, Caustics, Electrolysis, Even Media Blasting
  • NO Health or Environmental Hazards
  • FEATURE of dozens of articles in trade publications spanning the Automotive, Marine, RV, and Manufacturing Industries.
3
HOW TO USE EVAPO-RUST
  • Rust Removing Instructions:


  • CLEAN  & RINSE THE ITEM PRIOR TO DE-RUSTING:
  • (Item should be free of mud, dirt, loose rust, oil, and grease.)


  • WHY?
  • 1.)  EVAPO-RUST CONTAINS A SURFACTANT TO HELP IT OVERCOME  DIRT, OIL, AND SOME GREASES.  HOWEVER,  EVAPO-RUST IS A RUST REMOVER, NOT A CLEANER AND THE PERFORMANCE  MAY BE AFFECTED, ESPECIALLY FROM GREASES.


  • 2.)  EVAPO-RUST IS SEWERABLE AS SUPPLIED.  ADDING OILS AND GREASES MAY CHANGE THE STATUS OF THE DISPOSAL.  IF YOU ARE ONLY DE-RUSTING CLEAN STEEL, ALL THAT REMAINS IS CHELATED IRON AND WATER.  IN MOST CASES, ONLY THE IRON CONTENT SHOULD DICTATE THE DISPOSAL REQUIREMENTS.  (check local restrictions and dispose of according to local, state, and federal guidelines.


  • 3)  RINSING WITH WATER AFTER DEGREASING ASSURES YOU WILL NOT BE DRAGGING OTHER CLEANERS INTO THE EVAPO-RUST SOLUTION.  RAISING THE pH OF EVAPO-RUST WITH OTHER CHEMICALS CAN RENDER THE SOLUTION USELESS.
4
HOW TO USE EVAPO-RUST

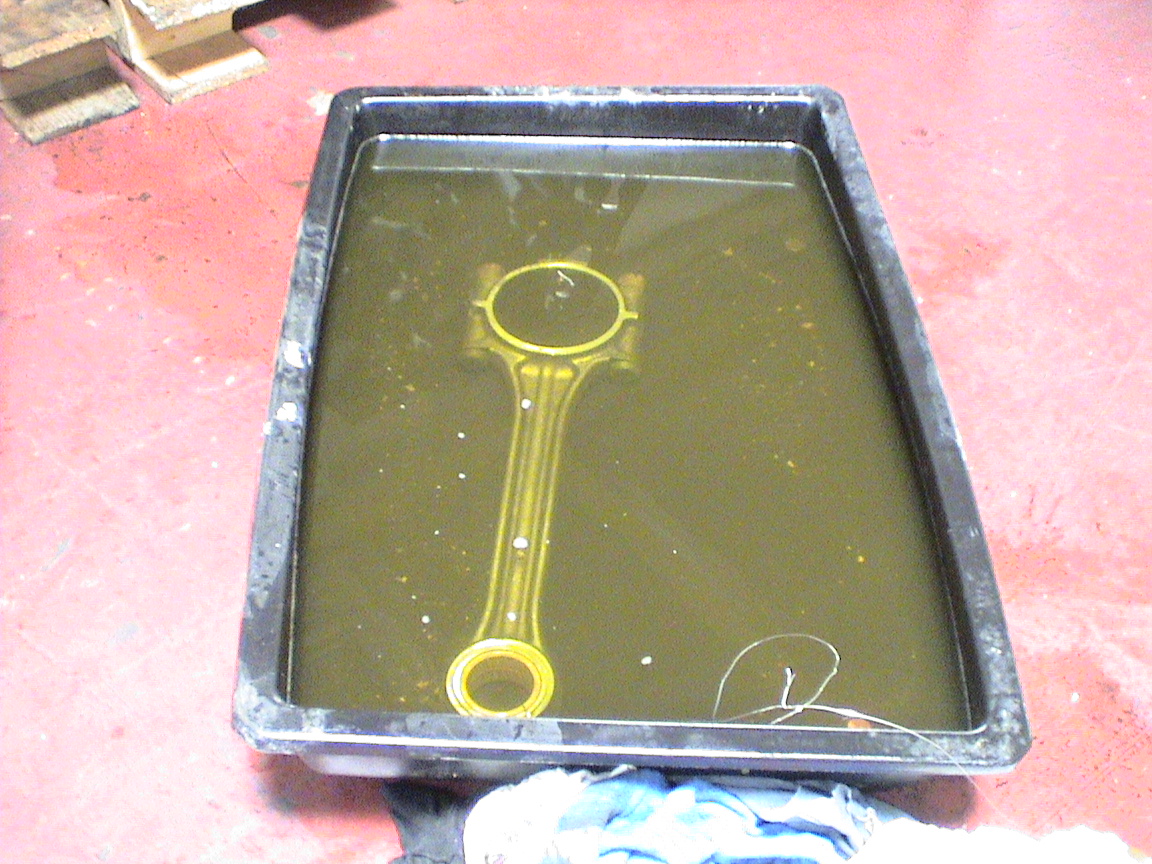

  • COMPLETELY IMMERSE  ITEM  *


  • EVAPO-RUST is easy to use. Fully immerse the rusted item in EVAPO-RUST and check progress in about 30 minutes; no scrubbing necessary. Soak times will vary from 30 minutes to 24 hours depending on severity of rust, type of steel, and temperature. EVAPO-RUST is water based, therefore the active molecules will slow down as temperature decreases and increase as temperature increases. We recommend utilizing EVAPO-RUST at a bath temperature above 60° F (normal room temperatures).


  • Once rust is removed, rinse item with water.
  • You can now paint, plate, or apply a long term Corrosion Preventative Compound such as Nox-Rust 3100, Permanent Coating, Corrosion Inhibitor or VCI protective packaging.
  • For short term rust inhibition, simply dip the item in EVAPO-RUST and allow to dry.
  • For longer term protection use VCI Paper or VCI plastic film packaging.
  • Rinse with ordinary water before painting, plating or applying a surface protective corrosion inhibitor or coating.


  • * For items too large for immersion call 1-866-577-2326 and ask about the PATCH
5
Evapo-Rust Health & Environmental Analytical
  • PH 6.1
  • Non-Hazardous
  • No VOC  -  NO HAP
  • Non-Corrosive (NACE TH0169 = <6.35 mm/yr)
  • Not Orally Toxic (LD50 >5g/kg)
  • Not Dermally Toxic (LD50 >2000mg/kg)
  • Not an eye irritant (MMTS = 0.0)
  • Not a skin irritant (PDII = 0.9)
  • Spent material is Non-Hazardous
  • Removes rust by Selective Chelation
  • No DOT Restrictions
6

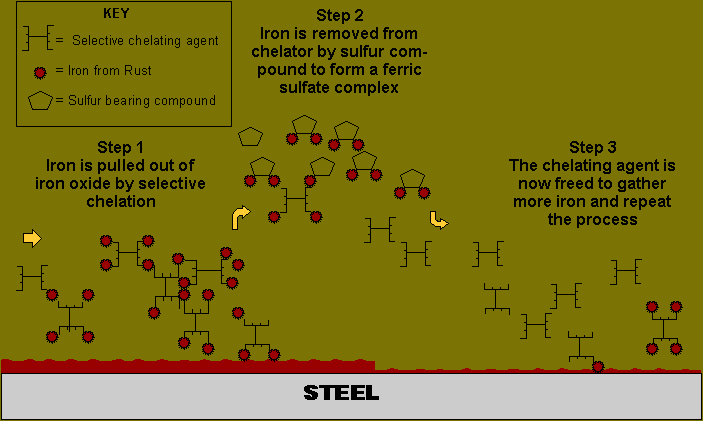

How Does Evapo-Rust Work?
7
Rust Remover  F.A.Q.
  • Biodegradable, Non-Hazardous Evapo-Rust specifically targets Iron oxide*
  • Evapo-Rust Safe Rust Remover does not harm aluminum, brass, copper, plastic, rubber, silicon, wood, felt, or glass (de-rust without dis-mantling)
  • Evapo-Rust Safe Rust Remover
  •     must be used as a liquid (wet process)
  • Safe Rust Remover does not affect plating
  • Safe Rust Remover does not affect non-oxide paints
  • Evapo-Rust works best above 60 F
  • Evapo-Rust does remove “sacrificial coatings” such as bluing, browning,  zinc, or other oxides.
  • *Hematite - a  Fe2O3 and- Fe(OH)3 , Goethite  are not affected by Evapo-Rust™ Safe Rust Remover
8
Who Uses Evapo-Rust?
  • Anniston Army Depot
    • Goals/Application
      • Acid & caustic reduction
      • Non-Hazardous Rust remover
      • Used as short term inhibitor (indoors)

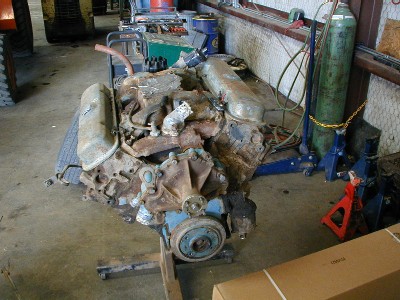

    • Engine Maintenance Facility
      • 1650 gallons in a 2,000 gallon dip tank
      • Continuous & Maintenance Free Service for over 2 Years
      • Utilized as a cold soak to de-rust and coat

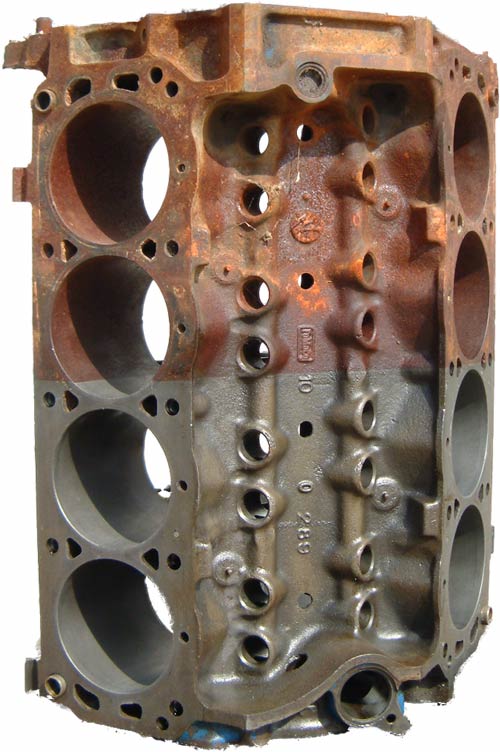

        • Blocks

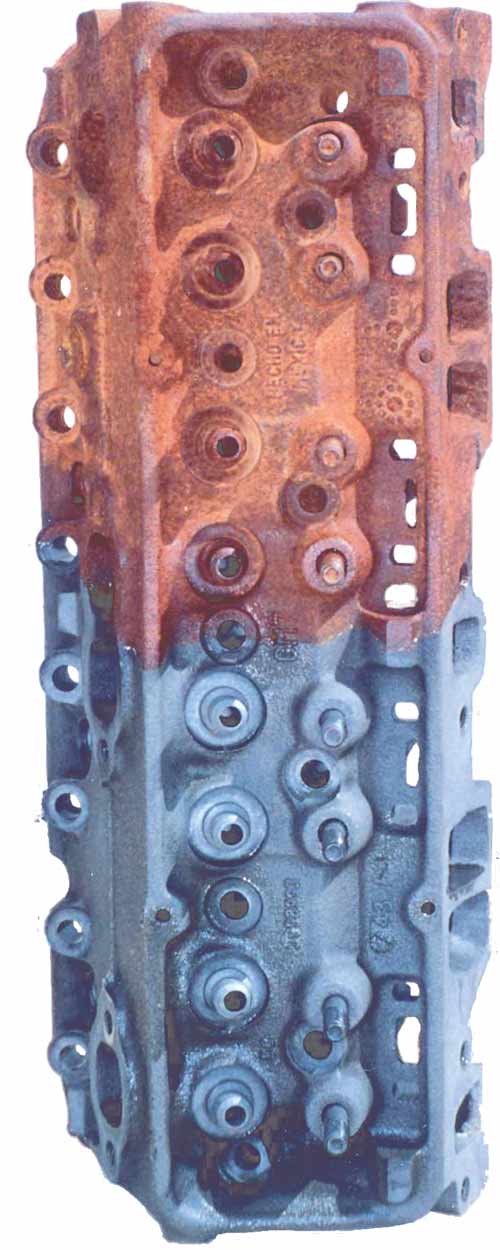

        • Heads
        • Cams
        • Cranks

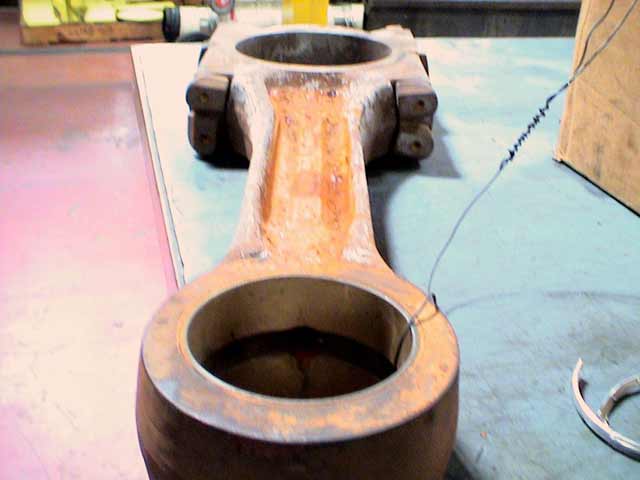

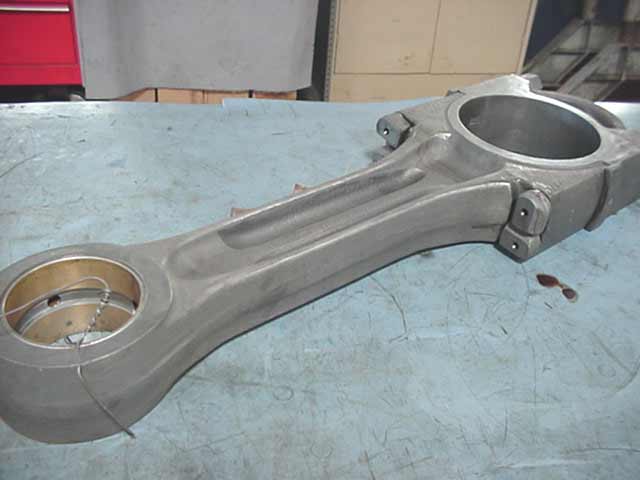

        • Rods
        • Shafts
        • Multi-substrate assemblies
9
Who Uses Safe Evapo-Rust
  • Ft. Hood
    • Goals/Application
      • Reduce hazardous waste/work environment
      • Acid/Hazardous Materials inventory reduction
  • Decrease Maintenance Burden
    • Result
      • Can order item in any size and ship by Air if just in time

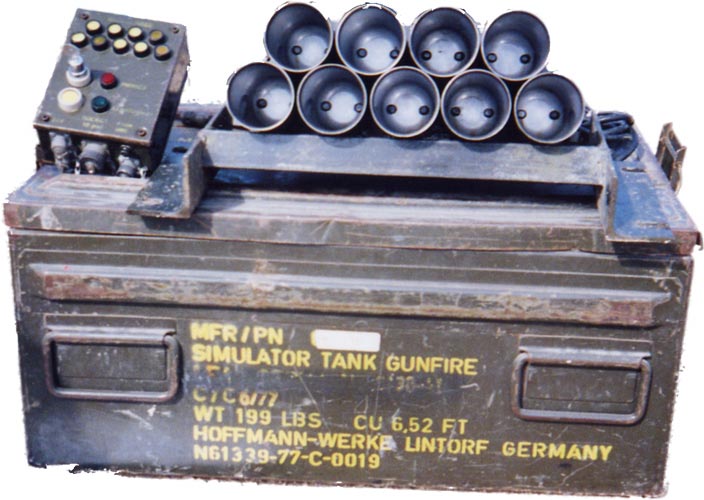

      • Utilized in DoL & shop level on tools, track, Hoffman Device
      • Decrease in hazardous waste and inventory
      • Reduction in man hours spent on derusting
      • Decrease in man hours for rust removal
      • Increased reliability from visual inspection of parts
      • Reduction in equipment loss due to abrasion or etching from wire brush, media and acid
10
Who Uses Safe Evapo-Rust

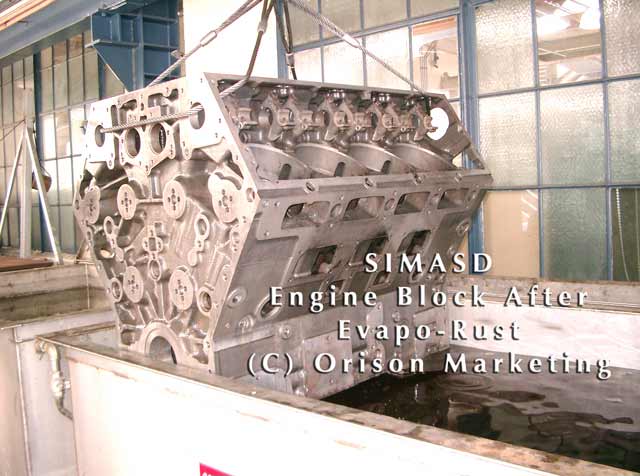

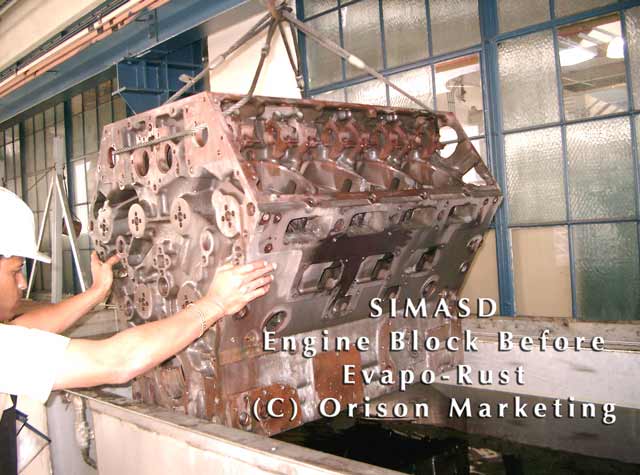

  • SIMA - San Diego (Naval Shipyard)
    • Goals/Application
      • De-rust new and used engines and parts without damaging surface
      • Reduce hazardous waste/work environment
      • Acid/Hazardous Materials inventory reduction
      • Decrease Maintenance Burden
    • Result
      • Process implementation in a 550 Gallon Vat for engines and related parts
      • Decrease in hazardous waste and inventory
      • Reduction in man hours spent on derusting
      • Reduction in equipment loss due to abrasion or etching from wire brush, media and acid
11
MORE EVAPO-RUST REMOVER USES

  • DEPOT LEVEL MAINTENANCE
  • NAVAL SHIPYARDS
  • AIR FORCES TOOL CRIBS
  • CONSTRUCTION
  • FORENSICS

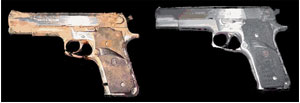

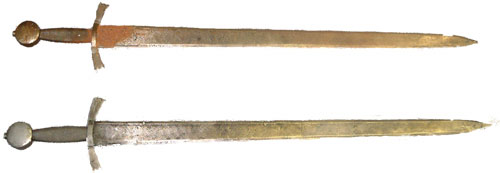

  • WEAPONS/GUNS
  • MANUFACTURING & OEM’s
  • RE-MANUFACTURERS
  • PIPE YARDS
  • ENGINES/AUTOBODY
  • MARINE/BOAT REPAIR
  • TURBINES
  • MUSEUMS/ANTIQUES
  • METALWORKING


12
Safe Biodegradable Evapo – Rust Remover Summary
  • Lower labor cost, low retraining cost, low prep
  • No PPE, No VOC, No HAP, Non-Hazardous
  • Average cost of  4-8 cents per pound of steel
  • Sewerable waste in most cases
  • Non-corrosive, safe for multi-metals & seals
  • $5-150 - typical equipment set up cost
  • Improves morale
  • Wet process
  • Safe on skin
13
EVAPO-RUST COMPARISON
14
Where to buy Safe Rust Remover
  • KPR ADCOR INC.
  • USA & Canada Toll Free 1-866-577-2326
  • Rust Remover Store
  • Phone: 905-628-3232
  • Fax:  905-628-2529
  • kpr@corrosionvci.com
  • www.Corrosionvci.com
